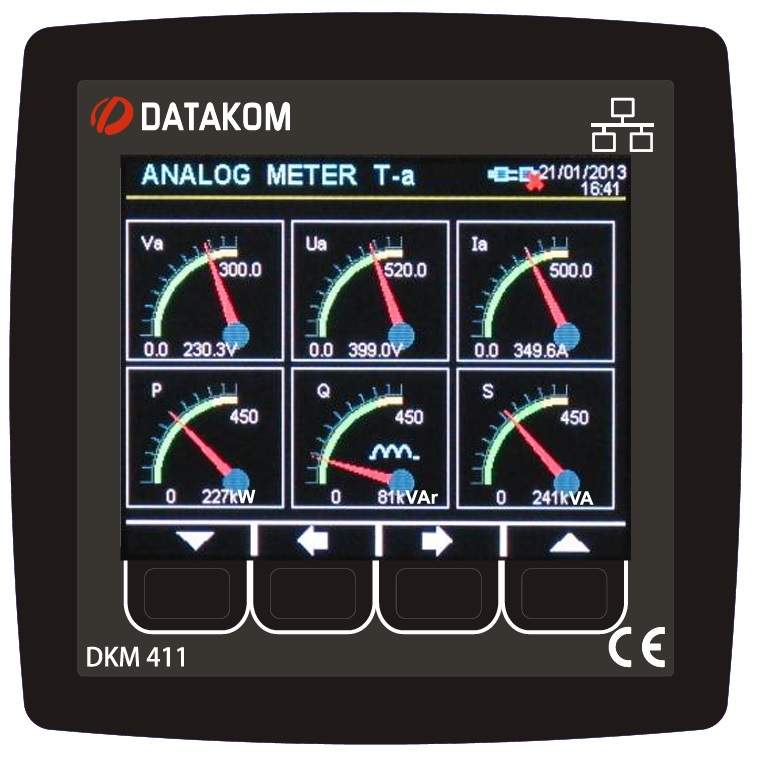

DKM-411-MK3 Network Analyzer 96x96mm

   • IP COMMUNICATIONS
   • FLEXIBLE WITH PLUG-IN MODULES
   • HARMONIC ANALYSIS
   • SCOPEMETER
The DKM-411 MK3 is an advanced precision metering device offering a 3.5” size, 320x240 pixel color TFT, together with unrivalled remote monitoring capabilities over internet in a compact and low-cost package.
The unit itself is a web server and can be opened through any browser for remote monitoring.
The central monitoring feature allows monitoring of thousands of meters from one central PC.

FEATURES:
True RMS measurements, 0.2% accuracy
  • 3.5” TFT LCD, 320x240 pixels
  • Harmonic distortion display (63 harmonics)
  • Oscilloscope, waveform display
  • Phasor diagram display
  • Internal battery backed-up real time clock
  • Max demand display
  • User configurable display screen
  • 2 configurable relay outputs
  • Energy pulse output capability
  • 2 opto-isolated, configurable digital inputs
  • Dual active-reactive power counters
  • Both mains/generator energy metering
  • 4 quadrant energy counters
  • Configurable user counters
  • Voltage transformer ratio for MV applications
  • Password protected front panel programming
  • Universal supply input (both AC & DC)
  • Reduced panel depth
  • Sealed front panel (IP54)

COMMUNICATIONS:
   3.5” Modbus RTU RS-485 and Modbus TCP/IP
   3.5” SNMP
   3.5” TCP/IP server / client
   3.5” Embedded web server
   3.5” Web monitoring and programming
   3.5” GSM-SMS sending
   3.5” e-mail sending
   3.5” Central Monitoring through IP
   3.5” Free configuration & monitoring software
